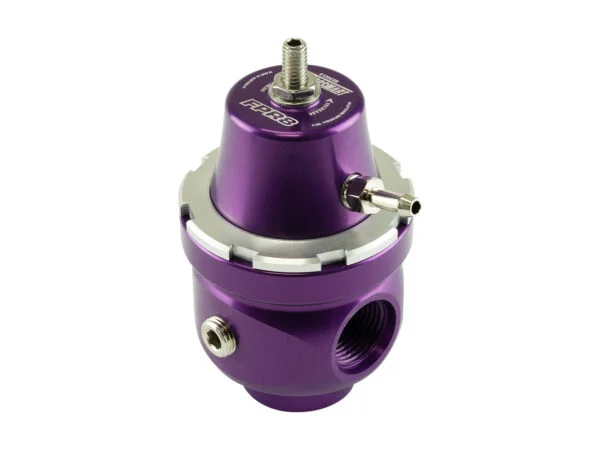

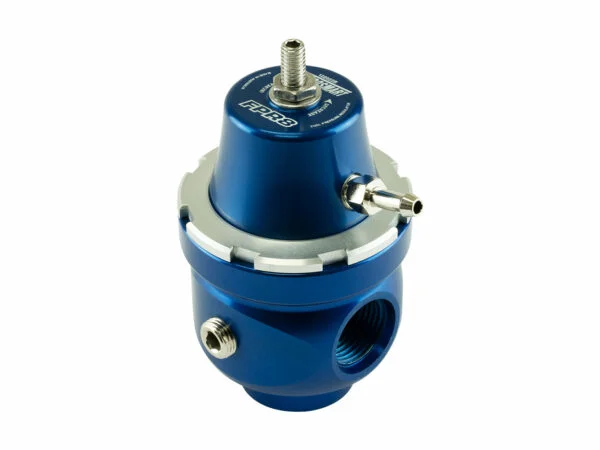

Turbosmart – FPR8 Fuel Pressure Regulator (-8AN)

Description

Turbosmart FPR8 Fuel Pressure Regulator Suit -8AN

This product provides market-leading fuel control and response via an actual 1:1 ratio and superior flow and bypass capacity for vehicles with -8 / 8AN fuel systems. Utilising the Turbosmart Stainless Steel Valve Seat & Milspec Diaphragm, the FPR8 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. The FPR8 Range includes an 8AN inlet, outlet, and returns port and is available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 2000HP systems.

Features

• Stainless Steel Valve Seat
• Suitable for all fuel types
• 1:1 Class Leading Ratio & Response
• Adjustable Pressure
• 1/8 NPT Gauge / Pressure Sensor Port
• Unique Locking Collar Design
• Milspec Diaphragm
• Detailed Specific Fuel Flow Data & Spec

Supplied with:

• Fuel Pressure Regulator
• Mounting bracket
• 2 x M5 Mounting Screws
• Turbosmart Decal
