Turbosmart – FPR6 Fuel Pressure Regulator (-6AN)

Description

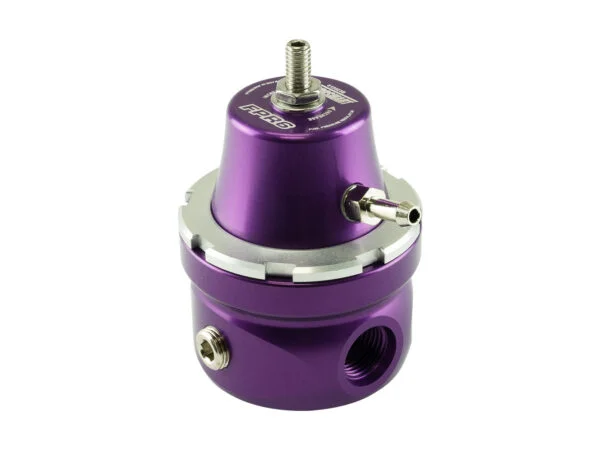

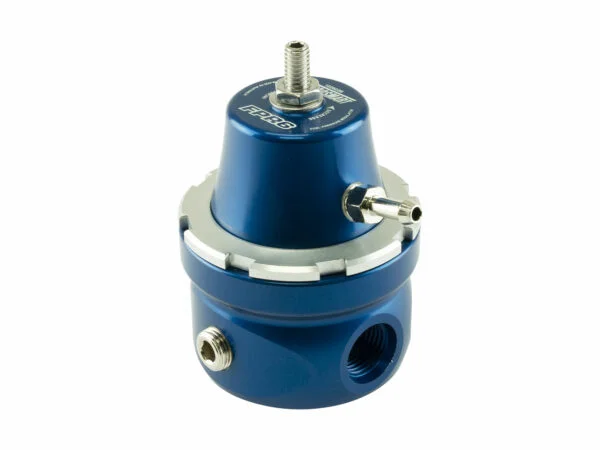

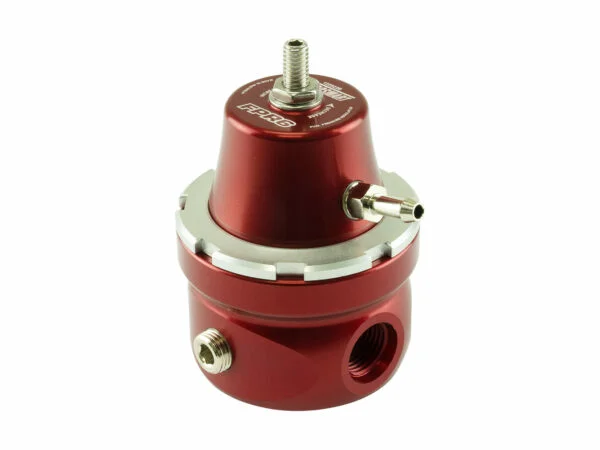

Turbosmart FPR6 Fuel Pressure Regulator Suit -6AN

This product provides market-leading fuel control and response via an actual 1:1 ratio and superior flow and bypass capacity for vehicles with -6 / 6AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR6 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR6 Range includes a 6AN inlet, outlet, and returns port and is Available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 1200HP systems.

Features

• Stainless Steel Valve Seat
• Suitable for all fuel types
• 1:1 Class Leading Ratio & Response
• Adjustable Pressure
• 1/8 NPT Gauge / Pressure Sensor Port
• Unique Locking Collar Design
• Milspec Diaphragm
• Detailed Specific Fuel Flow Data & Spec

Supplied with:

• Fuel Pressure Regulator
• Mounting bracket
• 2 x M5 Mounting Screws
• Turbosmart Decal
