Radium Engineering – Universal Competition Catch Can

Description

The Radium Universal Competition Catch Can (CCC) was created to provide motorsports participants with a high-quality product that meets the common 1 Quart minimum capacity requirements dictated by many organizing bodies including SCCA, NASA, and Formula Drift. It is CNC machined from solid 6061-T6 aluminium to provide the ultimate in function and finish. All of the CCC components are anodized to provide a long-lasting durable surface finish. The inlet/outlet ports are machined with 10AN ORB (7/8″-14) threads.

Like all Radium catch cans, the CCC has an easily accessed dipstick to quickly check fluid level. A threaded 4AN ORB port is integrated on the bottom for the ability to plumb a petcock drain valve. Stainless steel filtration media (shown below) provides surface area for oil vapor to condense and drop out of suspension. A large free flowing chamber for the condensing media (6 times larger than standard catch cans) does not create any flow restriction. The media can be removed for cleaning.

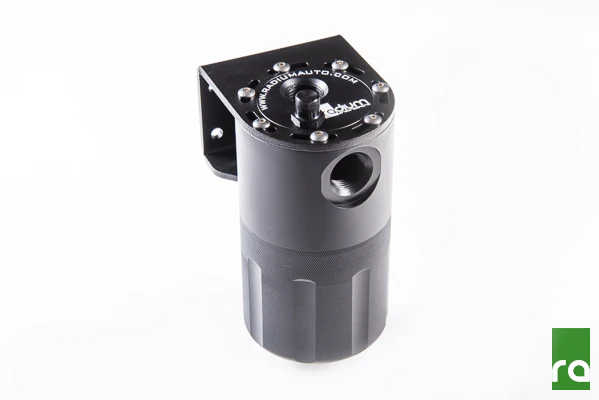

The included mounting bracket (shown above) permits full 360 degree rotation. Also, by adding the optional extension piece, the CCC can be configured in short or tall form. To upgrade at a later time from the short to long version.

Specifications:

• 20-0071 AND 20-0072
• INLET THREADS: 10AN ORB (7/8″-14)
• OUTLET THREADS: 10AN ORB (7/8″-14)
• DRAIN THREADS: 4AN ORB (7/16″-20)
• OUTER DIAMETER: 3.45″
• 20-0071
• WEIGHT: 2.6 lbs
• HEIGHT: 9.0”
• VOLUME: 1qt / 0.9L / 32floz
• 20-0072
• WEIGHT: 2.25 lbs
• HEIGHT: 6.3”
• VOLUME: 0.625qt / 0.6L / 20floz
