Lamspeed Racing- High Output Alternator Nissan RB20/25/26/30 – 180 AMP

Description

Lamspeed Racing- High Output Alternator Nissan RB20/25/26/30 – 180 AMP

Details:

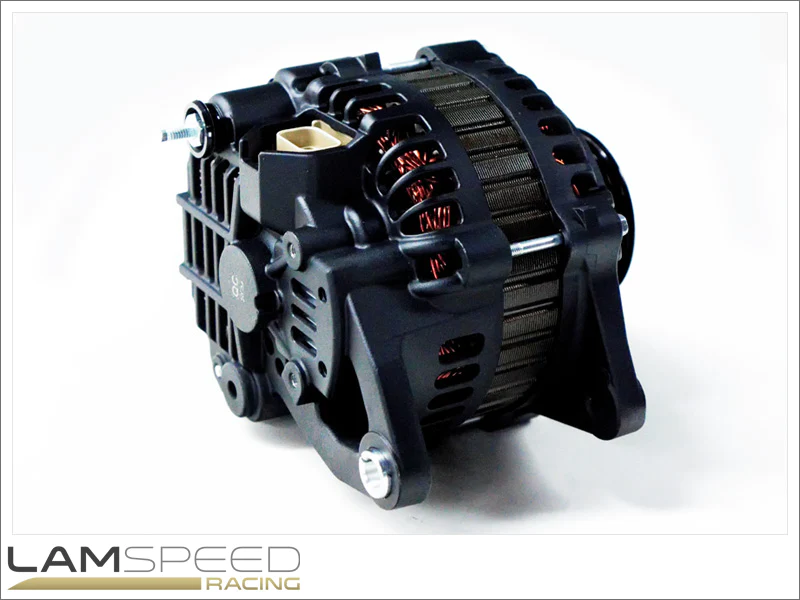

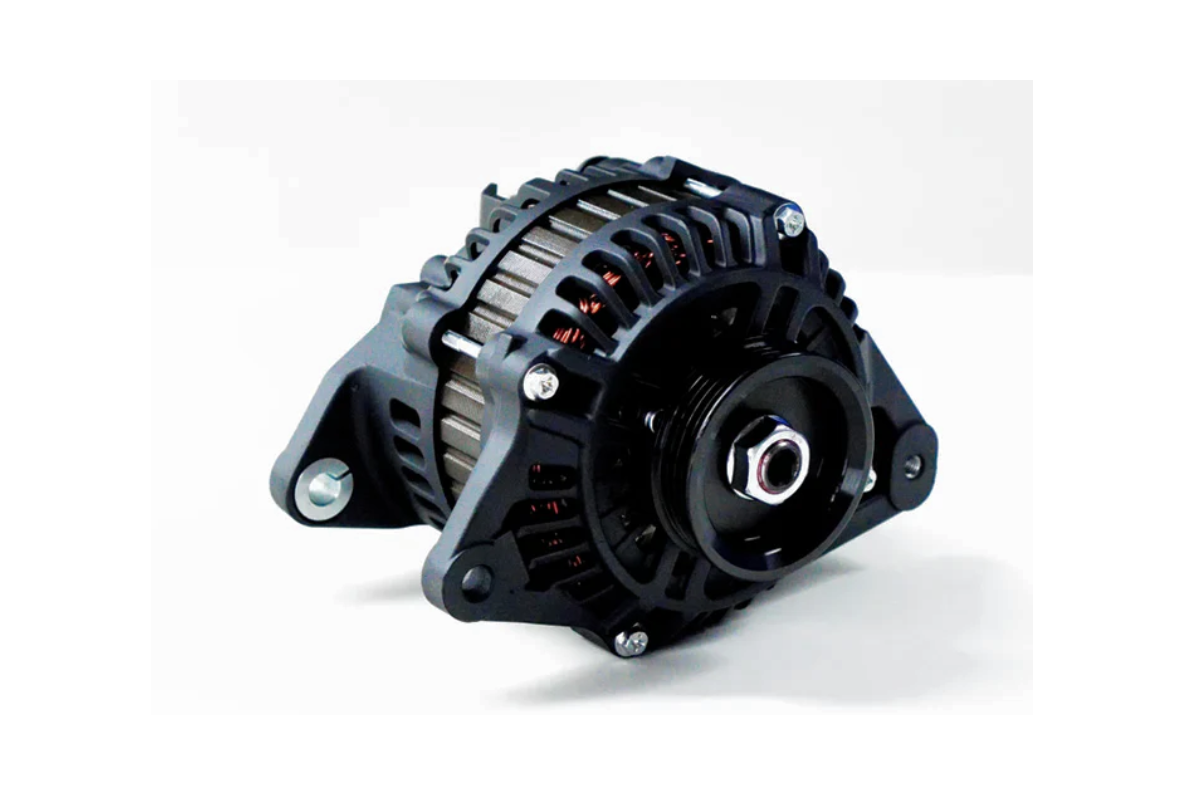

Lamspeed Racing High Output Alternator for Nissan RB engines. As featured on the World’s fastest and quickest Nissan GTRs JUN II by CRD 6.482@222MPH and KING32 by Maatouks Racing 6.6@214MPH

Features:

• Rated at 180 Amps
• Direct fitment for Nissan RB20/25/26/30 Engines.

Test Results:

• Maximum Alternator Output: 180 Amps
• Maximum Output Power: 2301 Watts
• Voltage Set Point: 14.43 Volts
• Leakage Current: 0.40 mAmps
• Ripple Current: 30 Amps
• Alternator Turn On Speed: 1236 RPM
• Regulator Activation Speed: 409 RPM
• Secondary Regulation: 15.66 Volts
• LRC Delay: 6.0 Sec.

• Note! Limited to 8200rpm (Engine) unless an under drive pulley is used to drop RPM by 13%.
