Description

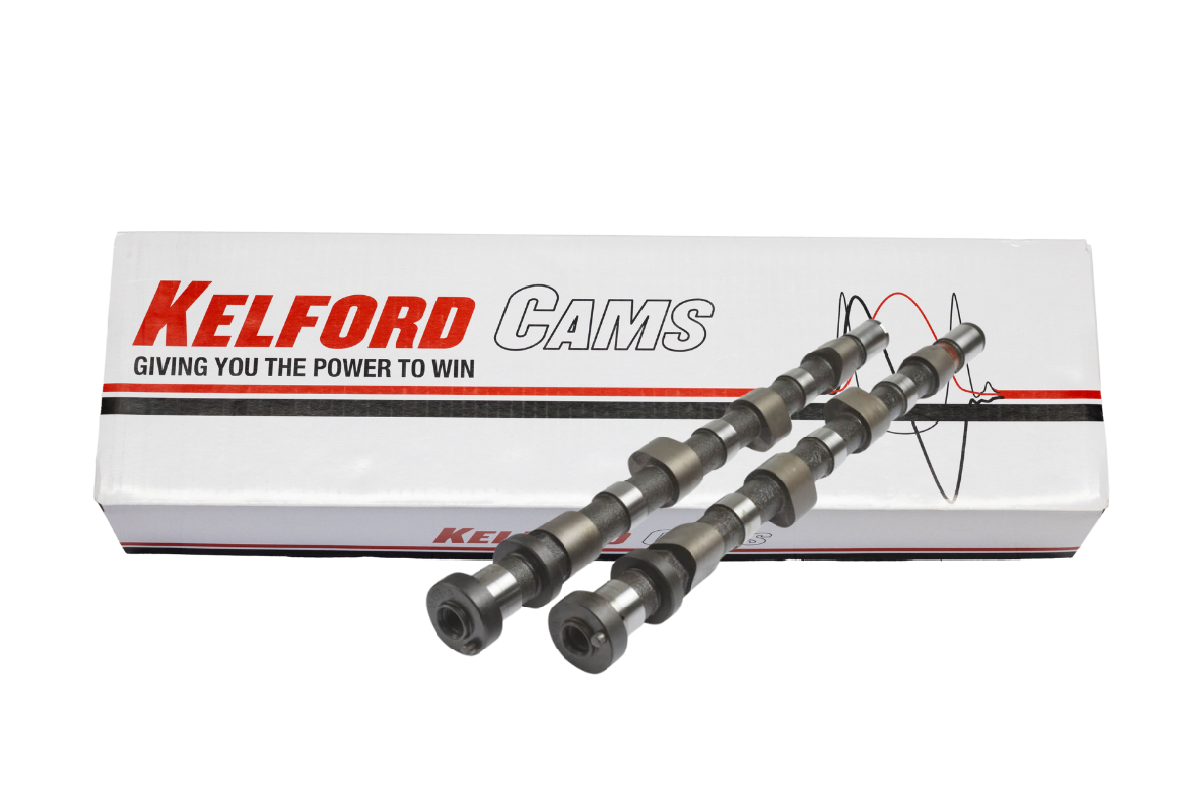

Kelford Cams SR20DET Camshafts (S14 S15 VCT)
- Drop-In: V-188-A2 and V-188-EZ
- Require Valve Spring Upgrade: V-188-A, V-188-B, V-188-C
The Kelford Cams SR20DET Camshafts range offer drop-in and modification/upgrade required camshafts. This range is to suit the VCT SR20, offering improved power and throttle responsible across a range of applications including street performance, drift, drag and race.
Whether you’re looking for more low to mid-range power or need it up top, Kelford SR20 Camshafts are a go-to option for SR20 engine builders and home-mechanics alike.
For Kelford SR20 camshaft specs, please select your preferred camshaft duration from the drop-down above. Please note, spec cards last updated February 2025.
Kelford V-188-A Camshaft Set:
- 260°/266° | 11.80mm/11.00mm Valve Lift
- Street performance cams
- Requires valve spring upgrade: KVS93 or KVS93-BT
- Improved low to mid-range power and good throttle response
- Wider power band using NVCS
- Ideal for 54mm – 60mm turbo (Garrett G25-660, G30-660, G30-770)
Kelford V-188-A2 Camshaft Set:
- 266°/270° | 11.00mm/11.00mm Valve Lift
- High performance drop-in cams
- Improved top end power compared to 188-EZ
- Wider power band using NVCS
- Ideal for 48mm – 60mm turbo upgrade (T25, T28, Garrett G25-550, G25-660, G30-660, G30-770)
Kelford V-188-B Camshaft Set:
- 268°/272° | 12.00mm/11.50mm Valve Lift
- Ultimate drift cams for fast spool and more top end power
- Requires valve spring upgrade: KVS93 or KVS93-BT over 29psi boost
- Wider power band using NVCS
- Suits 58mm – 66mm turbo (Garrett G30-770, G30-900, G35-900)
Kelford V-188-C Camshaft Set:
- 280°/280° | 12.50mm/12.00mm Valve Lift
- Racing cams for wide open throttle and high RPM power
- Requires valve spring upgrade: KVS93-BT
- Wider power band using NVCS
- Suits 64mm – 72mm turbo (G35-1050, G40-1150, G45-1125, G45-1350)
Kelford 188-EZ Camshaft Set:
- 254°/254° | 11.30mm/11.30mm Valve Lift
- Drop-in cams with excellent throttle response and improved low to mid-range power
- Ideal for small frame turbo 46mm – 54mm (factory T25, T28, Garrett G25-550, G25-660, G30-660)
- NOTE: Must retain stock rev limit and not exceed 22psi of boost with OEM springs
- For high mileage or high boost engines, Kelford Cams recommend KVS93 or KVS93-BT valve spring upgrade
Why Kelford Cams?
Kelford Cams are one of the most popular SR20 camshaft upgrade options! Whether you’re looking for a pair of drop-in cams to pair with your factory T25 or T28 or you’ve upgraded to an aftermarket turbo, there is an Kelford SR20 cams option for you. Better still, custom camshafts can be made to order (please enquire). In the Street Race Solutions workshop, we have put these camshafts to the test from 300 – 800HP and Kelford have delivered on performance every time.
