Haltech uC-10 Digital Dash

Description

Haltech uC-10 Digital Dash

Haltech heard your requests for a larger dash with a clear screen (without the buttons, shift lights and other distractions)!

Now offering a 10″ display (compared to the 7″ iC-7), this is the newest and biggest brother in the display dash arena! With more room to display your data, there’s never been a better time to replace or upgrade your cluster.

uC-10 Overview:

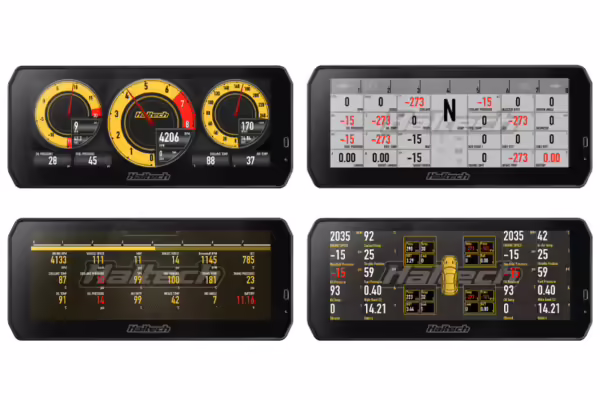

With a crisp, clear and full-color display, the all-new Haltech uC-10 Display Dash is now available!  The uC-10 is compatible with Haltech CAN, OBD2, and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups.

The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration or for use as an I/O expander in a Haltech environment.

• Full-colour, optically-bonded TFT screen
• 70° minimum viewing angle (vertical and horizontal)
• 1280 x 480 resolution, 600+ lumens
• IP64 (Dust-tight and protected against water splashes)
• 6-digit odometer
• 512MB of on-board looped data logging
• NSP compatible
• 10 x user configurable AVIP’s
• 4 x user configurable DPO’s
• 4 x user configurable SPI’s
• 1 x dedicated Tacho Input
• 1 x dedicated alternator excite
• 2 x Ambient light sensors

Suits: All current Haltech ECUs via CAN. Also Plug’n’Play compatible with the following aftermarket ECU brands: Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

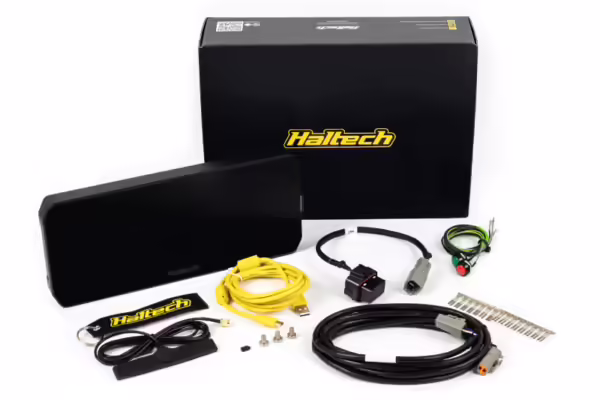

What’s in the Box?

• 1 x Haltech uC-10 Digital Dash

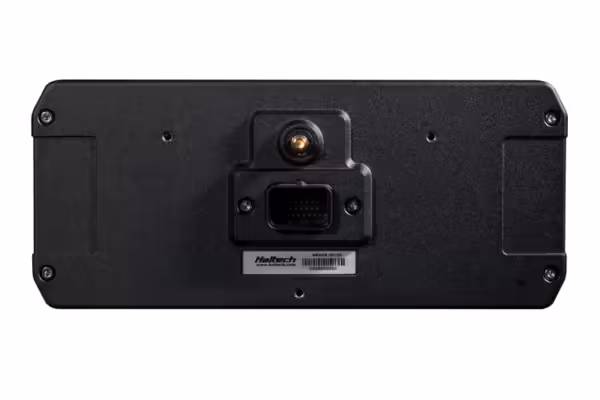

• 1 x 34P connector – same as HT-131001
• 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in)
• 1 x USB-C cable
• 3 x M5 x 8mm mounting screws
• 2 x Momentary switches, pre-terminated 800mm 22AWG Cable
• 1 x Glass Mount Wi-Fi antenna (Wi-Fi functionality will be made available with future firmware update)
• 1 x Haltech fabric keytag
• Quick Start Guide,
• Haltech stickers

OBDII functionality requires adapter cable HT-135003 (sold separately).

Part Number: HT-068000
