Haltech Tacho Output Adaptor

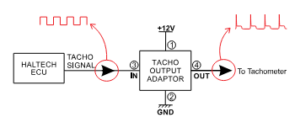

This adaptor is for use with coil negative driven tachometers. It converts the square wave tachometer signal from the Haltech ECU into a signal that emulates the negative side of an ignition coil for use with coil negative driven tachometers.
The Tachometer function in ESP should be enabled and configured as normal. Any ECU output may be used. See below for how to terminate the opposing connector.
Please take care when wiring this device as incorrect wiring will damage your ECU!
Outputs: 1 x Coil Negative emulated signal

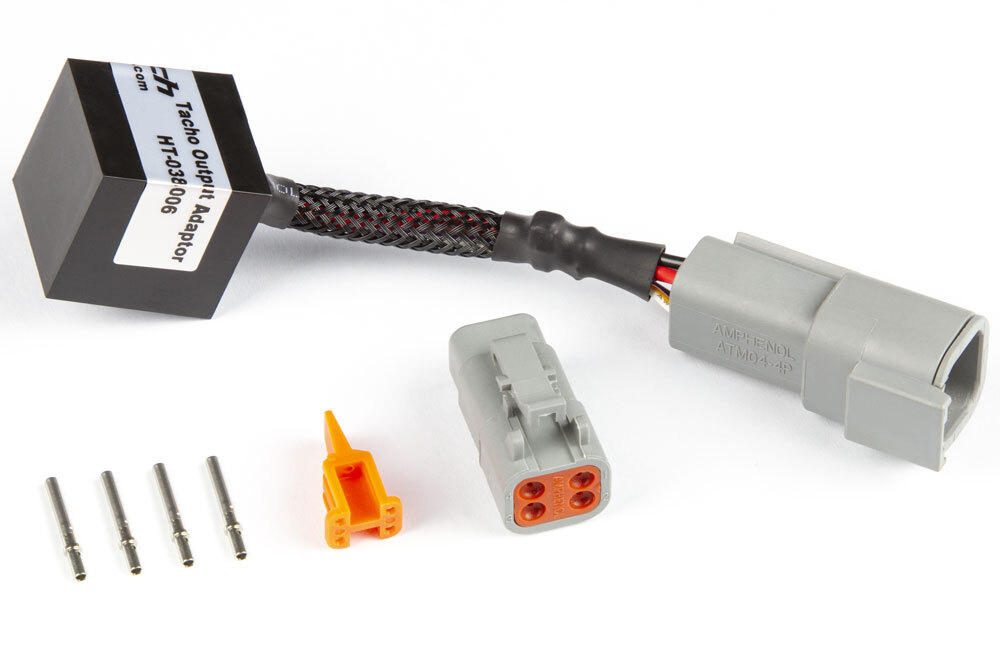

Includes: Matching Set of DTM 4 Connector plug and pins
Notes: Requires Spare DPO on ECU
Part Number: HT-038006
