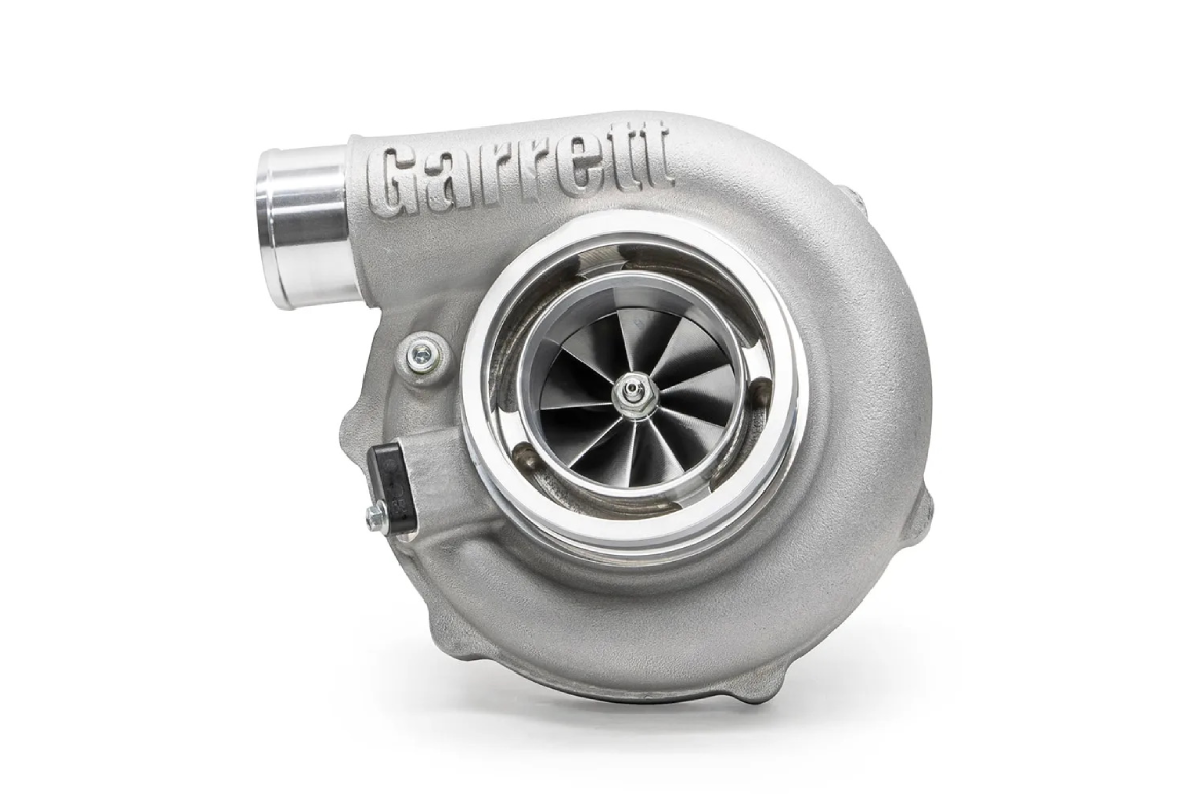

Garrett G25-550 Turbocharger 48mm (Reverse Rotation)

Description

Garrett G25-550 Reverse Rotation Turbocharger 48mm

As the smallest frame available from the G Series Reverse Rotation range, this compact unit is one of 7 reverse rotation turbochargers available from Garrett. Whether for a symmetrical twin turbo application or for a single turbo performance application, this turbo offers all the best features of the G-Series, including improved air flow for ultimate efficiency and horsepower!

TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For the G25-550, we would recommend it’s use in up to 440 wheel horsepower applications.

Generally, we would recommend the G25-550 turbocharger for SR20DET (and other 4 cylinder engines) looking to upgrade/increase their horsepower up to 400 wheel horsepower. If you have a 4-cylinder engine with goals are beyond 400 wheel horsepower, the next option to look at is the G25-660.

• Reverse Rotation
• External Wastegate
• 1.4L – 3.0L engine displacements
• 300HP – 550HP
• V-Band
• 0.72 A/R or 0.92 A/R

The G25-550 is also available in standard rotation, click here to shop!

Turbocharger Options
Choose  to purchase a supercore with an exhaust housing or just the supercore or exhaust housing on it’s own! Please contact us for internally wastegated options.

• 0.72 A/R, V-Band / V-Band (871388-5001S + 740902-0069)
• 0.92 A/R, V-Band / V-Band (871388-5001S + 740902-0068)
• G25-550 Reverse Rotation Supercore ONLY (871388-5001S)
• 0.72 A/R, V-Band / V-Band Rear Housing ONLY (740902-0069)
• 0.92 A/R, V-Band / V-Band Rear Housing ONLY  (740902-0068)

Garrett G25-550 Reverse Rotation Features:

• Ceramic Dual Ball Bearing with Steel Cages
• Stainless Steel Turbine Housing
• Mar-M Turbine Wheel
• 76% Maximum Efficiency
• Compressor Inducer: 48mm
• Compressor Exducer: 60mm
• Compressor Trim: 65
• Compressor A/R: 0.70
• Turbine Inducer: 54mm
• Turbine Exducer: 49mm
• Turbine Trim: 84

Understanding the Name:
G Series turbocharger
25 classifies the size of the frame
550 identifies the maximum crank horsepower rating of the turbocharger

We don’t just recommend Garrett – we rely on them, pushing them to their limits on the dyno for both track and street use. Investing in a Garrett turbo means peace of mind and top-tier performance. Having used the G Series turbos almost exclusively on all SRS builds, Garrett is the obvious choice for anyone prioritizing reliability and performance.

If you are in the market for a 400HP turbo and are unsure if this is the right turbo for your application and power goals, give our team a call on 07 4602 3858!
