Haltech Elite 1500 ECU + Premium Universal Wire-in Harness Kit (5m)
$2,999.00
FREE SHIPPING
Description

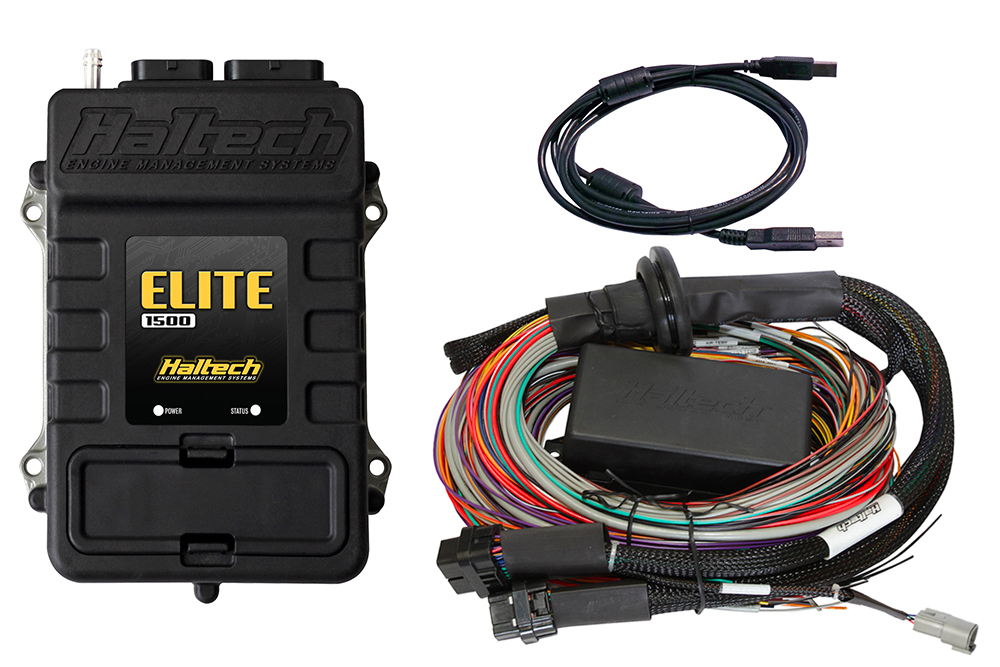

Haltech Elite 1500 ECU + Premium Harness Kit (5m)
The Elite 1500 is a two-connector ECU ideal for popular late model performance and racing applications. Recommended for 4 cylinder, Drive-By-Wire (DBW) or 2 rotor engines, EFI conversions, engines with multiple variable camshafts. This product in particular includes the Elite 1500 ECU and Elite 1500 ECU Premium Harness 5m length.
Outputs: Up to 4 injector and 4 ignition.
Suits: Universal 1-12 cylinder or 2 rotor applications.
Includes:
- Elite 1500 ECU with DBW and Race Functions
- Premium Universal Wire-In Harness (5m)
- Firewall grommet
- Moulded 6 power circuit Haltech fuse box and lid
- 4 relays
- 7 fuses
- Pins for the 2 spare power circuits,
- USB programming cable
Haltech Elite 1500 ECU
Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 1500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 1500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.
- Supports 1 to 12 cylinder engines
- 2 rotor engines
- Normally aspirated or forced induction
- Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
- Staged, sequential, semi sequential, batch or multipoint injection patterns
- Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
- Connect to a wide range of display dashes and expansion devices via CAN.
- 4 x fuel injection outputs
- 4 x ignition outputs
- 12 x digital outputs
- 10 x analogue voltage inputs
- 4 x synchronised pulsed inputs
- 3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor)
- 2 x dedicated engine position inputs with extensive trigger type support
- Up to 45 channels of Input & Output (I/O) expansion (via CAN)
- USB laptop communication (Windows)
- NSP Calibration Software – intuitive and easy to use
Part Number: HT-150905
