Description

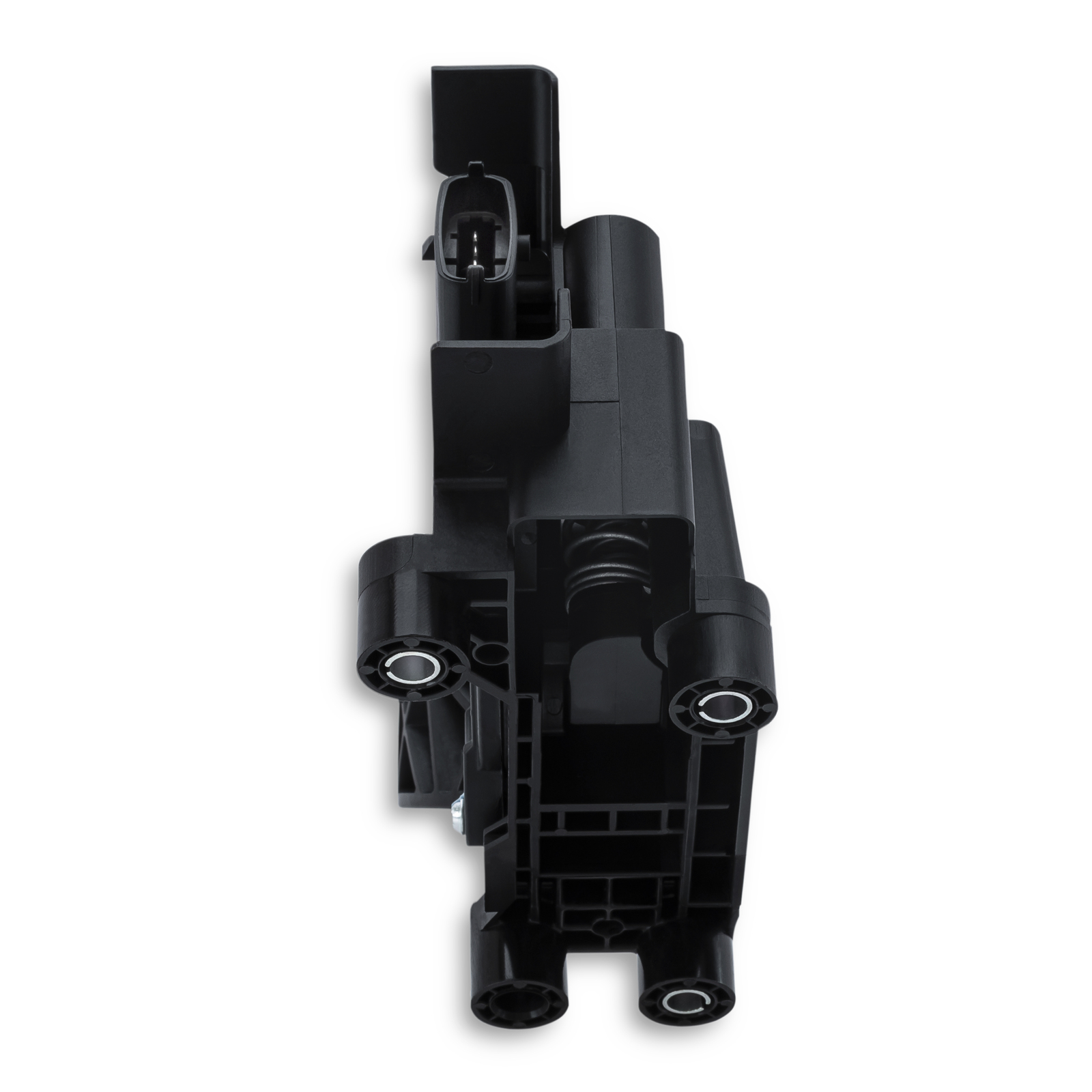

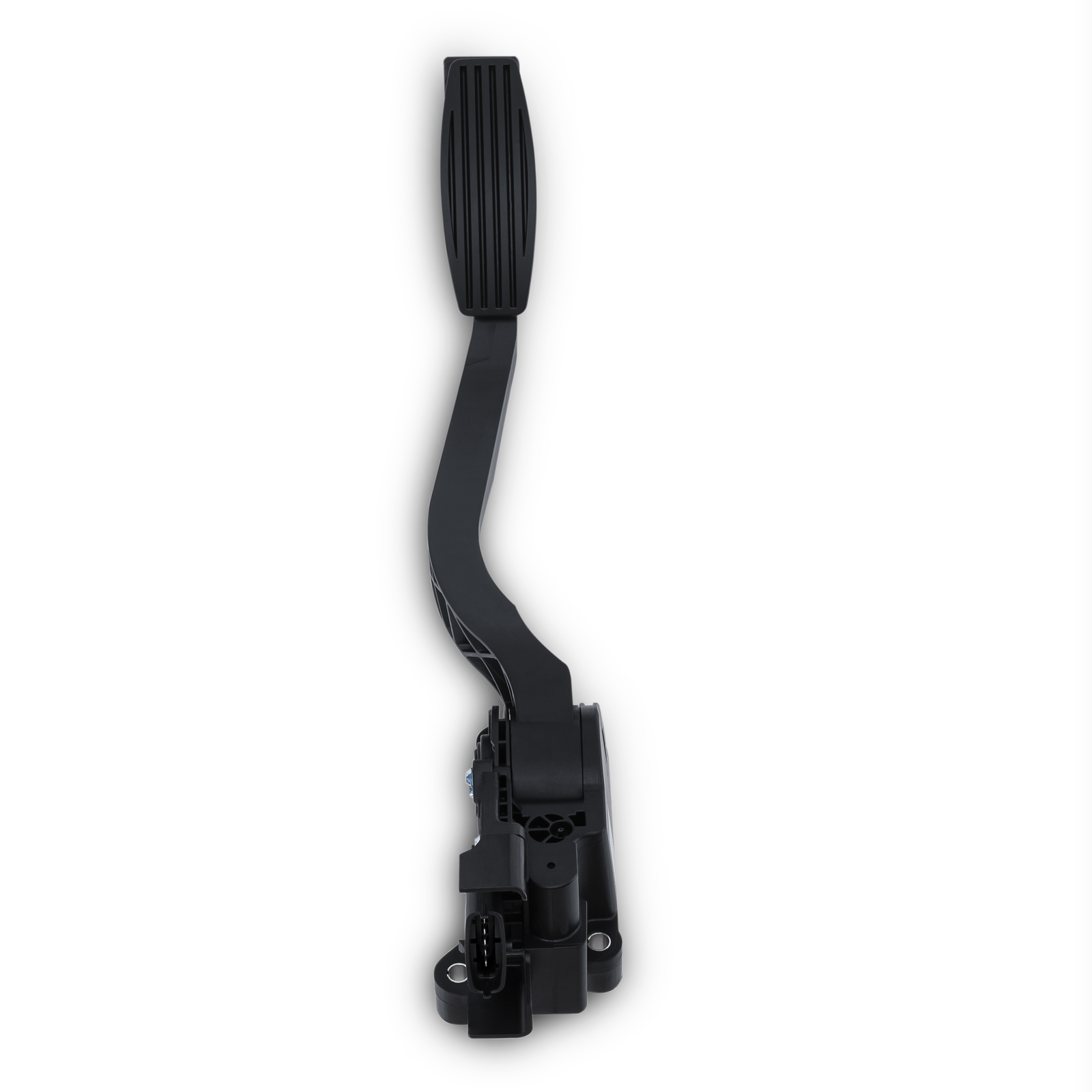

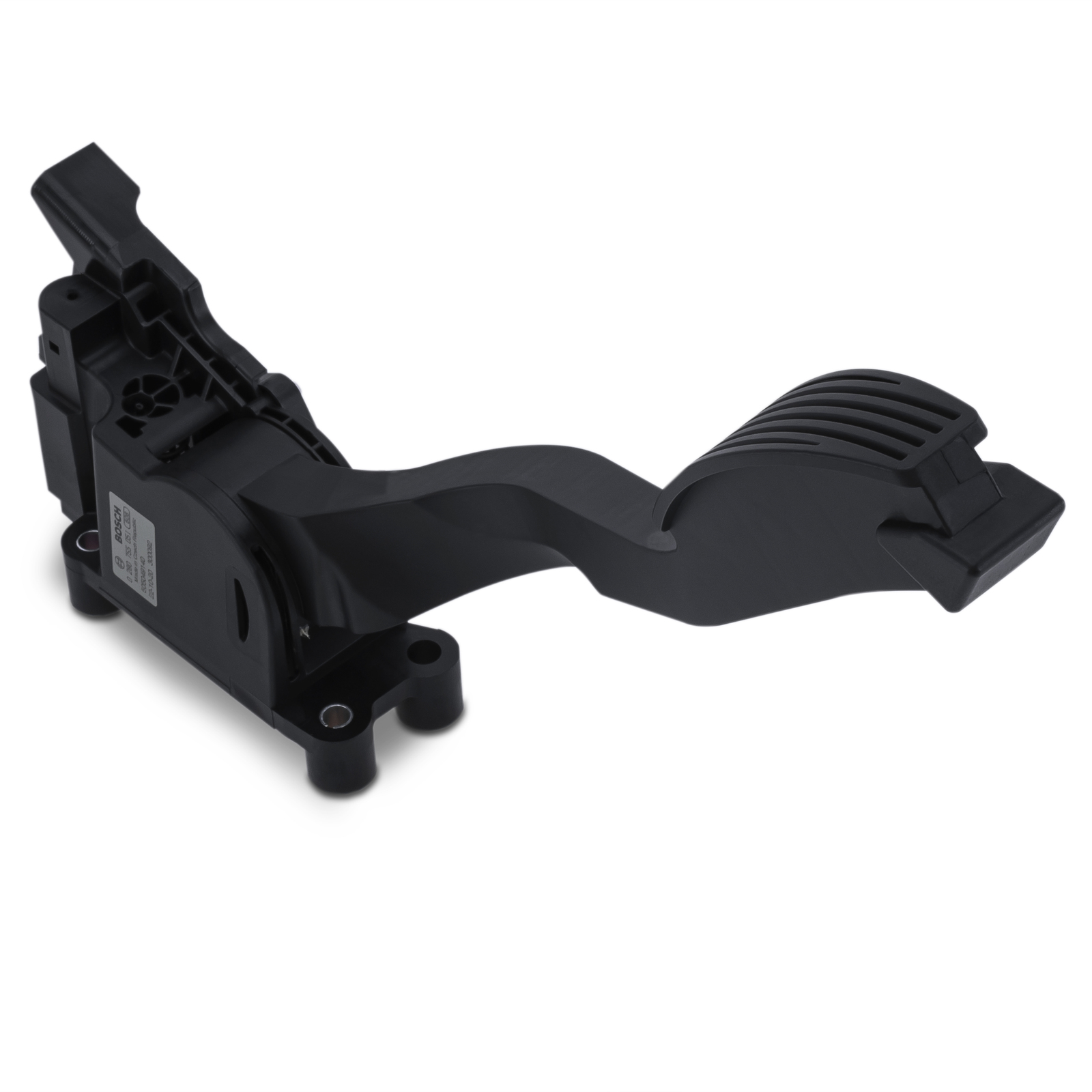

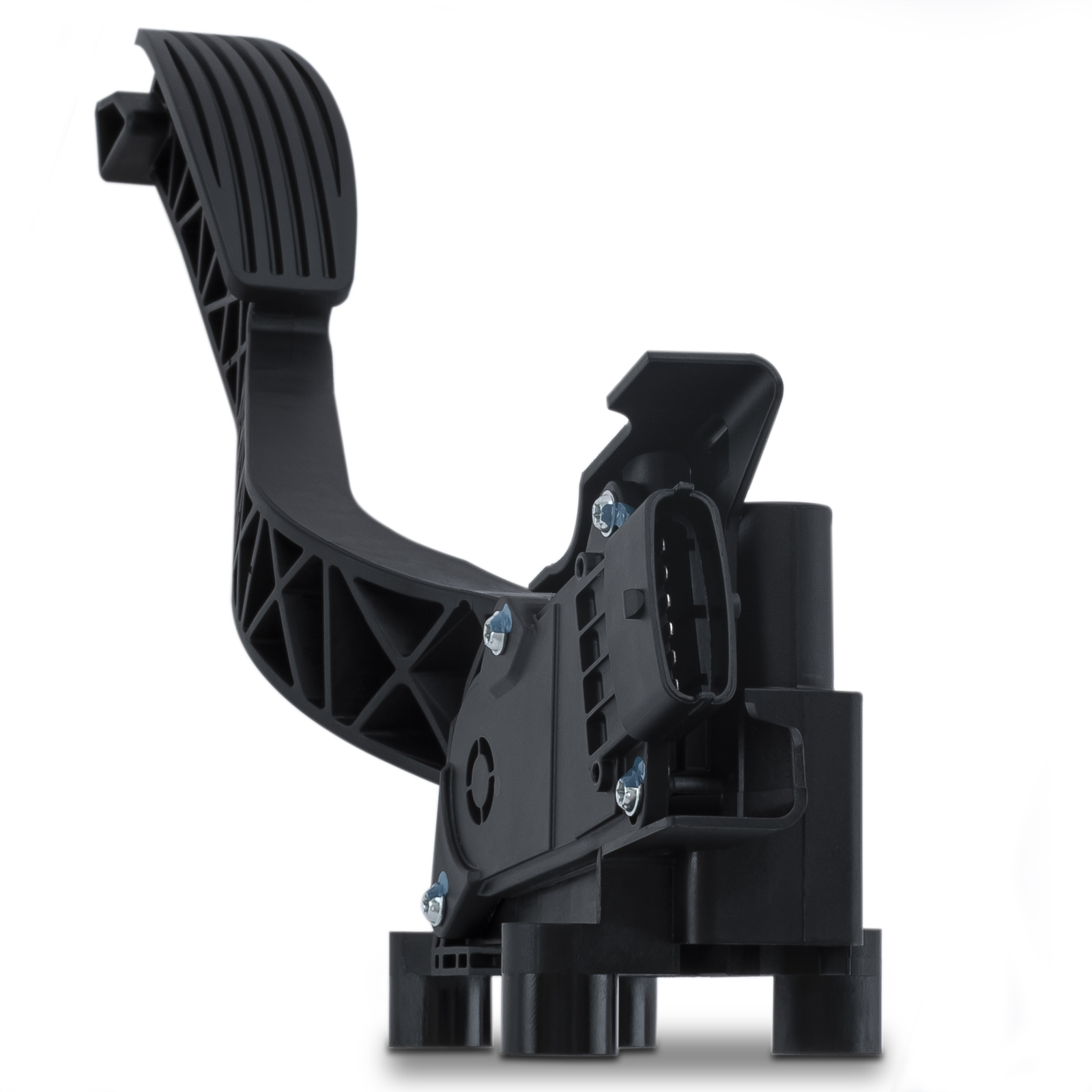

Bosch DBW Accelerator Pedal
The Bosch DBW Accelerator Pedal is required when converting to a drive by wire system! The pedal relays accelerator position back to the ECU to reliably control the electronic throttle body. This is also a universal DBW pedal suited to generic and custom applications (modification may be required).
Features:
- 16 degree (~70mm) travel
- Firewall mounted hanging design
- Suitable for Drive By Wire (DBW) control
- Generic use and custom applications
- Redundant dual output potentiometers suitable for Electronic Throttle Bodies

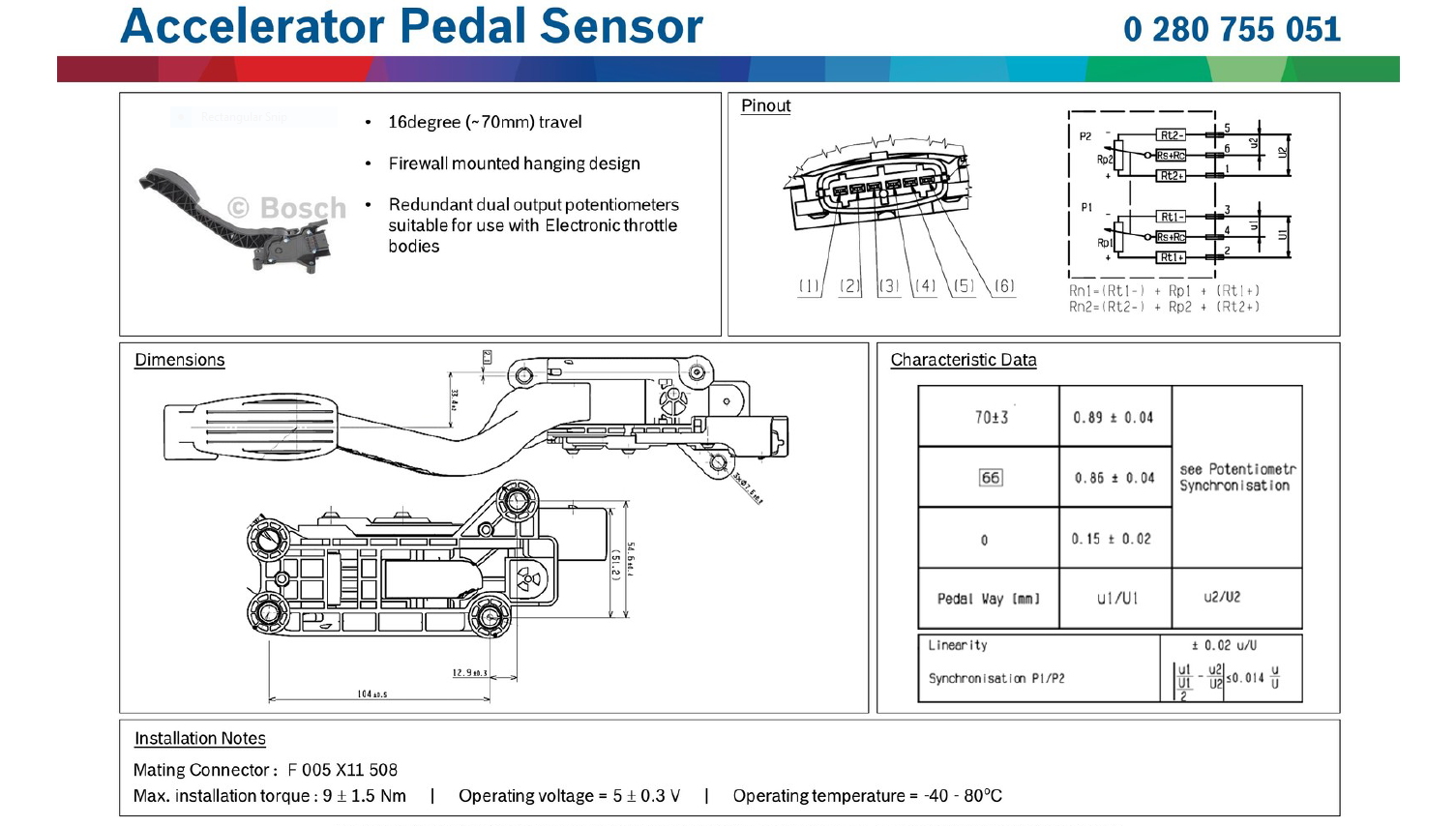

Specifications:
- Use 6-pin Compact mating connector F 005 X11 508
- Max Installation Torque: 9 + 1.5 Nm
- Operating Voltage: 5 + 0.3 V
- Operating Temperature: -40°C – 80°C
Part Number: 0280755051
We utilise a Bosch Drive By Wire Pedal n many of our own builds! If you have any questions about running one of these, give our team a call on 07 4602 3858!
About Bosch Motorsport:
Bosch Motorsport is a division of the global Bosch Group, a leading supplier of technology and services worldwide. From weekend enthusiast to Formula 1, Bosch has been providing advanced electronics, components and service for motorsport and high performance applications internationally since 1901. Worldwide experience and race proven technology backed by local support is in your race car when you use Bosch Motorsport components.
